Example of McLaren Mapping

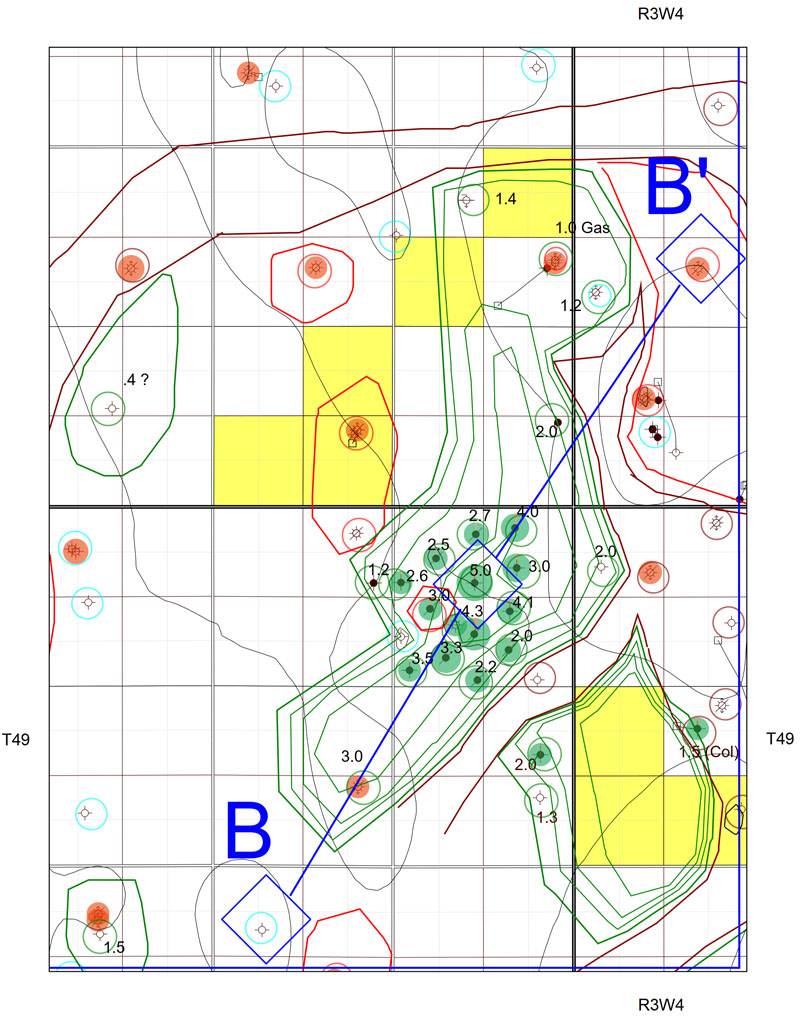

The map below shows shale filled channels cutting through a coarsening upward beach sand. (Circled in brown)These channels act as barriers trapping oil. The green circles show cum oil production from the Mclaren Fm. The values show net pay. The net pay has been contoured with a 1 meter contour interval. Cross Section B-B' (below) shows these channels. Red Circles indicate gas production from the McLaren Fm. Blue circles indicate that the McLaren is wet.

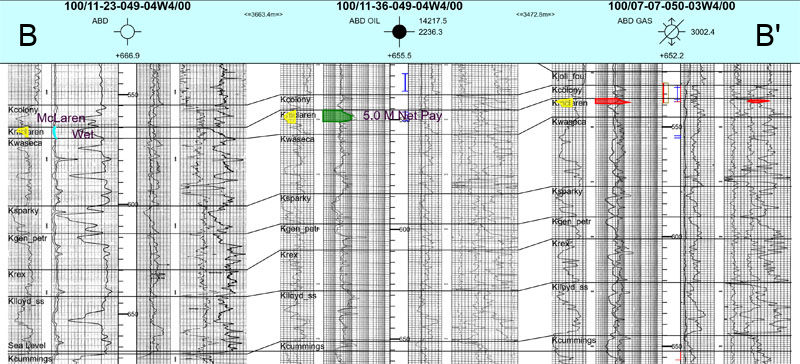

Cross Section B - B' showing the McLaren Fm.
The map below shows shale filled channels cutting through a coarsening upward beach sand. (Circled in brown)These channels act as barriers trapping oil. The green circles show cum oil production from the Mclaren Fm. The values show net pay. The net pay has been contoured with a 1 meter contour interval. Cross Section B-B' (below) shows these channels. Red Circles indicate gas production from the McLaren Fm. Blue circles indicate that the McLaren is wet.
Cross Section B - B' showing the McLaren Fm.
