Example of Sparky Mapping

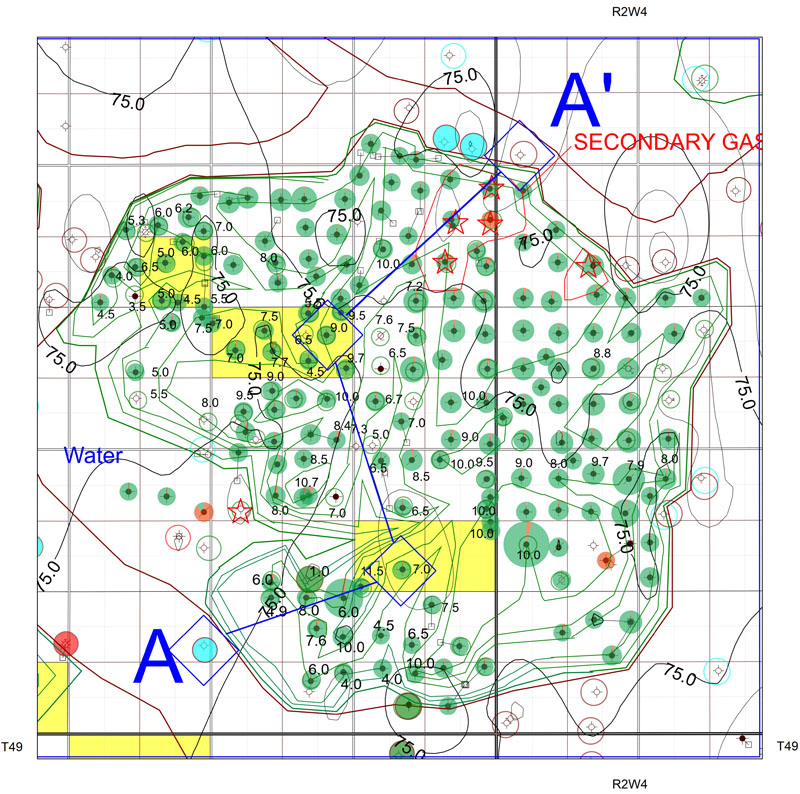

The map below shows shale filled channels cutting through a coarsening upward beach sand. These channels act as barriers trapping oil. The green circles show cum oil production from the Sparky Fm. The values show net pay. The net pay has been contoured with a 2 meter contour interval. Cross Section A-A' (below) shows these channels which are indicated with brown circles on the map.

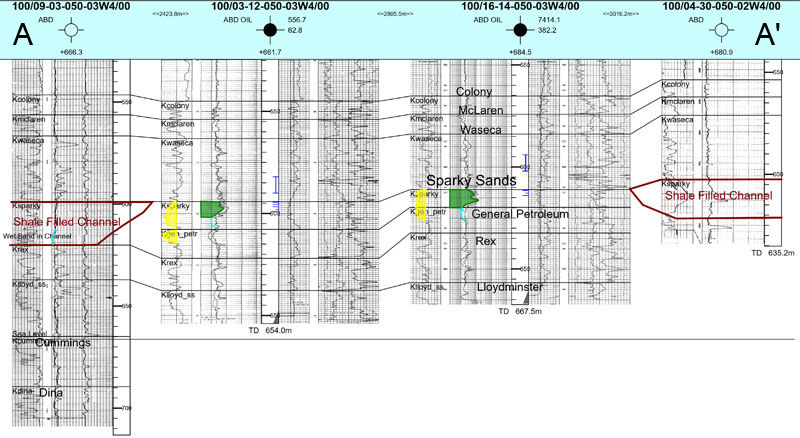

Cross Section A - A' showing the Sparky Fm.
The map below shows shale filled channels cutting through a coarsening upward beach sand. These channels act as barriers trapping oil. The green circles show cum oil production from the Sparky Fm. The values show net pay. The net pay has been contoured with a 2 meter contour interval. Cross Section A-A' (below) shows these channels which are indicated with brown circles on the map.
Cross Section A - A' showing the Sparky Fm.
